Welcome to Starr Power Tongs

Hydraulic Power Tongs

Starr Power Tongs are built to provide reliable, high torque solutions, outfitted with serviceable, quality parts with a turnaround time you won't get anywhere else.

13 5/8-inch Hydraulic Power Tongs

35,000 ft-lb Rated Torque

5 1/2-inch Inch Hydraulic Power Tongs

25,000 ft-lb Rated Torque


35,000 ft-lb Rated Torque

Integral Backups

Starr Power Tongs are built to provide reliable, high torque solutions, outfitted with serviceable, quality parts with a turnaround time you won't get anywhere else.

Hydraulic Power Tongs

Starr Power Tongs are built to provide reliable, high torque solutions, outfitted with serviceable, quality parts with a turnaround time you won't get anywhere else.


40,000 ft-lb Rated Torque
60,000 ft-lb Rated Torque


30,000 ft-lb Rated Torque

hydraulic-tongs-14

50,000 ft-lb Rated Torque
75,000 ft-lb Rated Torque

9 7/8” Hydraulic Power Tongs

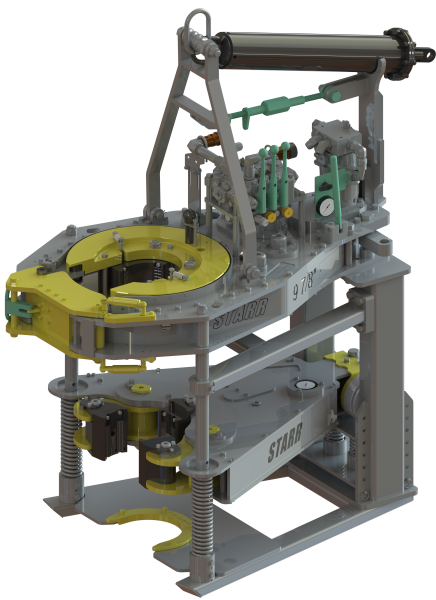

  • 79.45.03.33.02_86.60.01.03_1.png Power Tong
  • 79.45.03.33.02_86.60.01.03  - #ISO - Battleship Grey.png Power Tong
  • 79.45.03.33.02_86.60.01.03_SIDE.png Power Tong
  • 79.45.03.33.02_86.60.01.03_TOP.png Power Tong

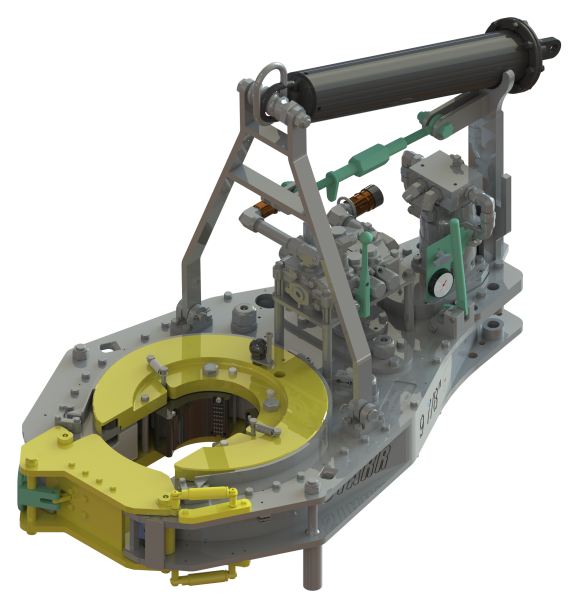

  • 79.45.03.33B.01_1.png Power Tong
  • 79.45.03.33B.01_ISO.png Power Tong
  • 79.45.03.33B.01_SIDE.png Power Tong
  • 79.45.03.33B.01_TOP.png Power Tong

Specifications


9 7/8" Tong 9 7/8" Tong w/ Backup
Capacity 4 1/2” – 9 7/8”
3 1/2" - 10 3/4"
Width 37" (94cm) 40.8" (103.6 cm)
Length  61.3" (155.7 cm) 62.5" (158.8 cm)
Height 47.5 (120.6 cm) 78.9" (200.4 cm)
Weight (lb.) 2,150 (977 kg) 3,300lb (1,500 kg)
Rated Pressure 2500 psi
Rated Torque 40,000-60,000 ft-lb. (54,232-81,349nm)
Handle Length 36" (91.4 cm)

9 ” Hydraulic Power Tongs


Rated Torque of 40,000 or 60,000 ft-lb for Everyday Use.
Wrist-Saver Door Latch Design
Rated Operating Pressure of 2,500 psi
Overnight Delivery Available for Parts
Quality, Serviceable Components

JAWS AVAILABLE: 4-1/2” – 9-7/8”
(Other sizes available upon request.)

OPTIONAL BACKUP JAWS: 3-1/2" - 10-3/4"
View Optional Backup Assemblies



RATED TORQUE FOR EVERYDAY USE

Our power tongs are built to last. With 2 motor options for the 9-7/8” hydraulic power tong, you crew can reach rated torque at 2,500 psi. Which means, the tools can reach 40,000 ft-lb or 60,000 ft-lb of torque on every single joint, every day.

QUALITY & SERVICE

With an investment like this, you don’t want one malfunctioning part to be the reason why your equipment isn’t performing. That’s why we build our tongs to be serviceable, high in quality. By using an ISO 9001:2015 quality system, we maintain a close eye on our products.

Lastly, if you find your team in a bind, and need a part. Starr likely has the part on the shelf. Call us today for a quote, and possible overnight shipping.
