Hydraulic Power Tongs
Starr Power Tongs are built to provide reliable, high torque solutions, outfitted with serviceable, quality parts with a turnaround time you won't get anywhere else.
Integral Backups
Starr Power Tongs are built to provide reliable, high torque solutions, outfitted with serviceable, quality parts with a turnaround time you won't get anywhere else.
Hydraulic Power Tongs
Starr Power Tongs are built to provide reliable, high torque solutions, outfitted with serviceable, quality parts with a turnaround time you won't get anywhere else.
 Tong/77.30.03.33.01_1.png?width=600&height=600&mode=max)
 Tong/77.30.03.33.01_ISO.png?width=600&height=600&mode=max)
 Tong/77.30.03.33.01_SIDE.png?width=600&height=600&mode=max)
 Tong/77.30.03.33.01_TOP.png?width=600&height=600&mode=max)
 Tong/77.30.03.33.02_86.40.01.01_1.png?width=600&height=600&mode=max)
 Tong/77.30.03.33.02_86.40.01.01_ISO.png?width=600&height=600&mode=max)
 Tong/77.30.03.33.02_86.40.01.01_SIDE.png?width=600&height=600&mode=max)
 Tong/77.30.03.33.02_86.40.01.01_TOP.png?width=600&height=600&mode=max)
Specifications
| 9 5/8" Tong | 9 5/8 Tong w/ Backup | |
| Capacity | 4 1/2” – 9 5/8”
|
2 3/8" - 10 3/4" |
| Width | 36.2" (91.9 cm) | 40.8" (103.6 cm) |
| Length | 60" (152.4 cm) | 61.6" (156.5 cm) |
| Height | 47.25" (120 cm) | 80.5" (204.5 cm) |
| Weight (lb.) | 1,650 (660 kg) | 3,000 (1,364 kg) |
| Rated Pressure | 3000 psi | |
| Rated Torque | 35,000 ft-lb. | |
| Handle Length | 36" (91.4 cm) | |

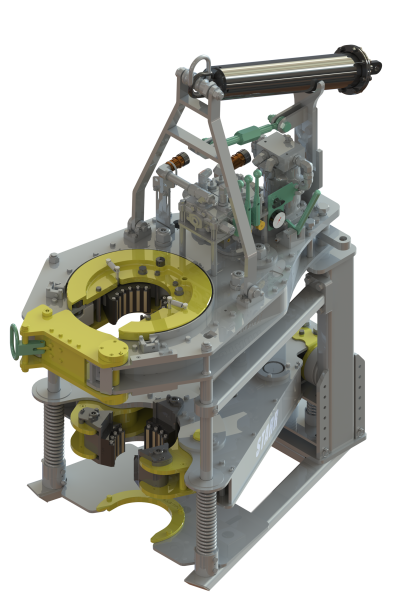

9 ⅝” Hydraulic Power Tongs
Rated Torque of 35,000 ft-lb for Everyday Use
Wrist-Saver Door Latch Design
Rated Operating Pressure of 3,000 psi
Overnight Delivery Available for Parts
Quality, Serviceable Components
JAWS AVAILABLE: 4-1/2” – 9-5/8”
(Other sizes available upon request.)
OPTIONAL BACKUP JAWS: 3-1/2" - 10-3/4"
View Optional Backup Assemblies
RATED TORQUE FOR EVERYDAY USE
QUALITY & SERVICE
With an investment like this, you don’t want one malfunctioning part to be the reason why your equipment isn’t performing. That’s why we build our tongs to be serviceable, high in quality. By using an ISO 9001:2015 quality system, we maintain a close eye on our products.
Lastly, if you find your team in a bind, and need a part. Starr likely has the part on the shelf. Call us today for a quote, and possible overnight shipping.
